ARS-A15 Absolute Ring Sensor

■ General information

￭ Contact free detect speed and position

￭ Max.sensing speed up to 10,000 rpm

￭ Standard output:BISS-C protocol

￭ Resolution range:12~16 Bits

￭ High protection class IP67 designed for use in harsh environment

￭ Sensing gap:0.3±0.03 mm

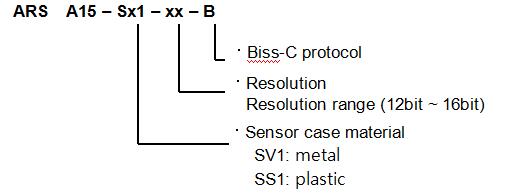

■ Scanning head selection

■ Ring selection

AR62–35–A15–3【OD:62mm/ID:35mm】

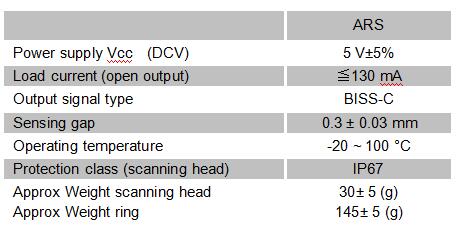

■ Scanning head specification

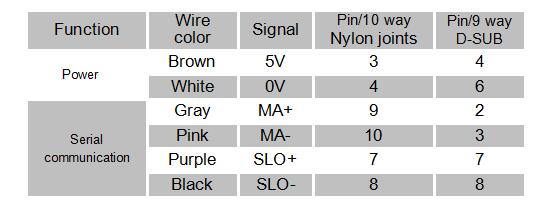

■ Connector assignment

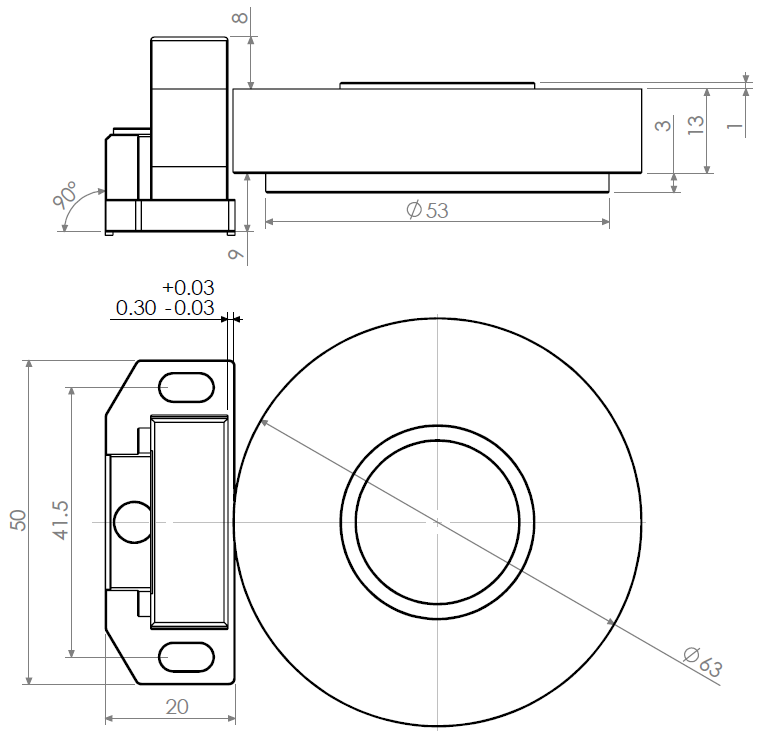

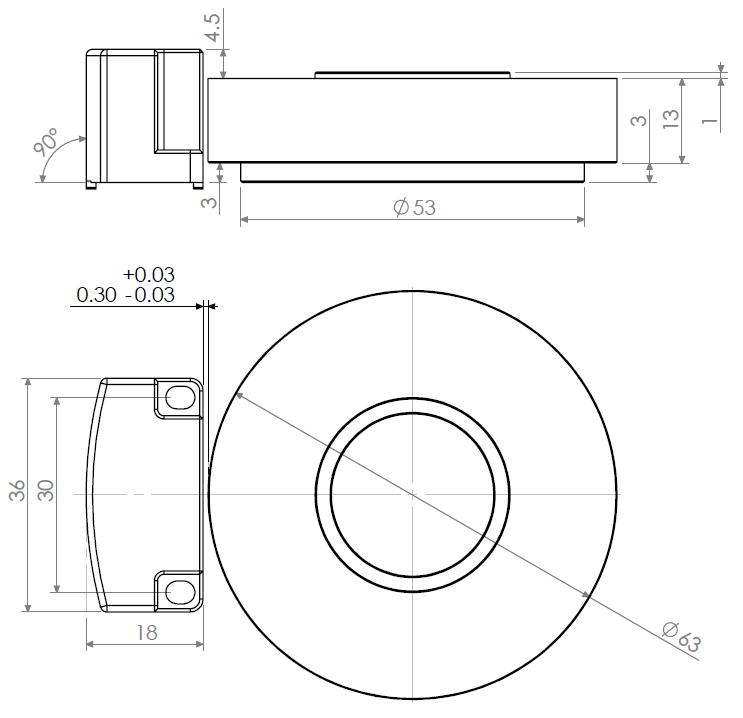

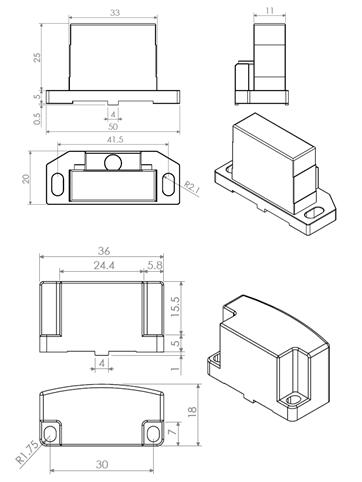

■ Scanning head drawing

■ Ring dimension

■ Layout of Scanning head and Gear Wheel

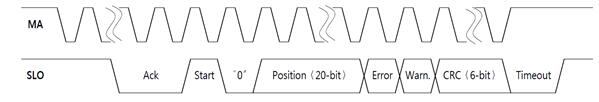

■ BiSS-C timing diagram

■ ARS-A15:resolution rang 12~16 bits,standard:15 bit
