MGS Type Gear Sensor Module

■  Description

￭  A non-contact inductive method to detect the position and speed of rotation.

￭  Maximum speed up to 25000rpm.

￭  High response output,the output signal has the chord and the square wave.

￭  Modulus 0.4 mm,induction gap 0.15+0.03 mm.

￭  Streamlined,fast plug-in installation,large-scale process.

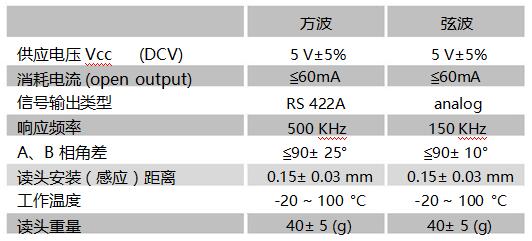

■  Head Reader Specification

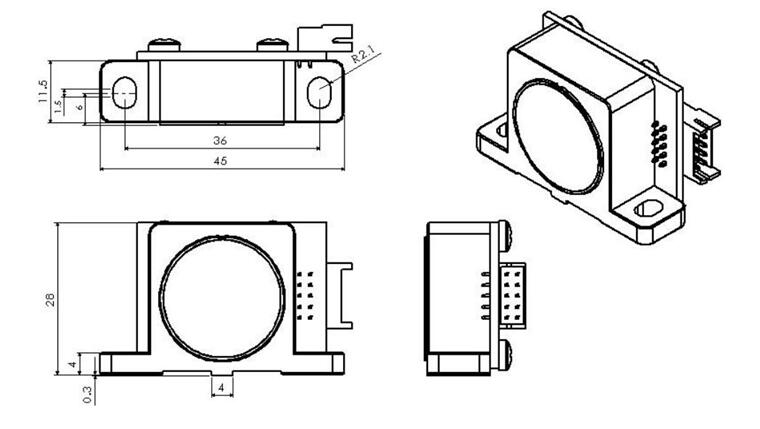

■  Size

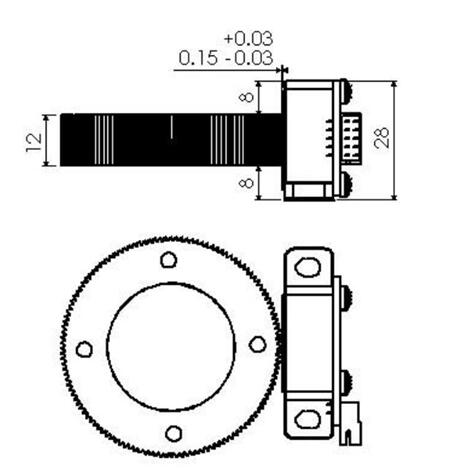

■  Installation diagram

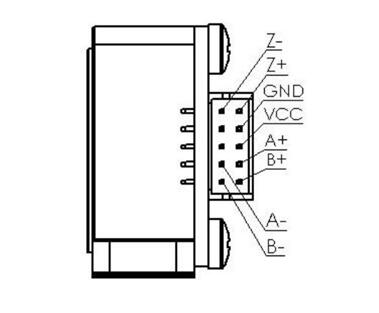

■  Foot Definition
